Terminology
From September 2021 I will be going through all the entries alphabetically by maker to standardise the terminology used in my jack descriptions. This also includes measurements which I have decided to standarded in inches which was the measurement used during manufacture of the bulk of jacks in the databases. As a concession I have decimalised the fractions of an inch except where they are cast on a specific jack.
Inches are represented by ".
As of 17 November 2021 I have amended alphabetically up to and including Ern Lake jacks.
Screw Jacks
![]() |
Single Screw |
![]() |

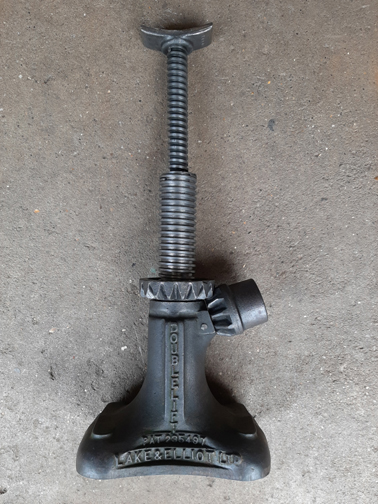

Double or twin Screw. Some manufacturers also use the suffix DL (Double Lift) in their casting as shown in this Lake & Elliot example. |
![]() |

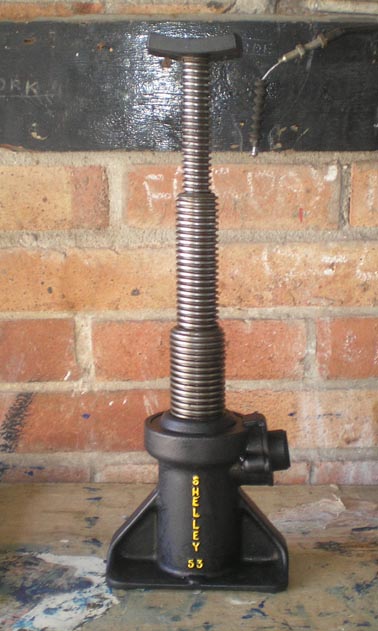

Triple Screw. Some manufacturers also use the suffix TL (Triple Lift) in their casting. |
![]() |

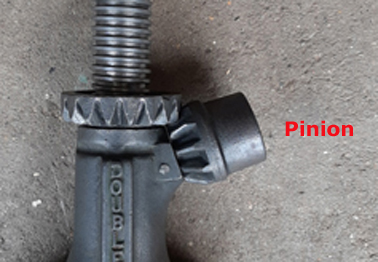

Pinion |
![]() |

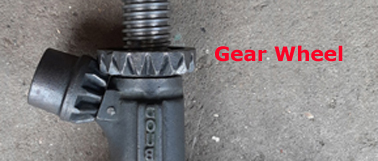

Gear Wheel |
![]() |

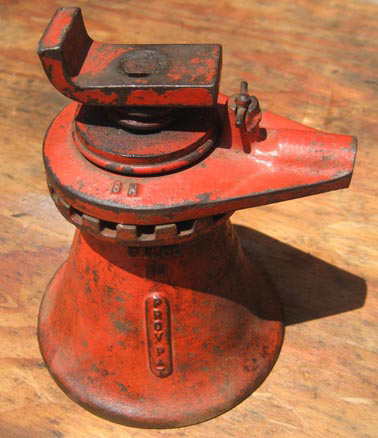

Ratchet Winder |
![]() |

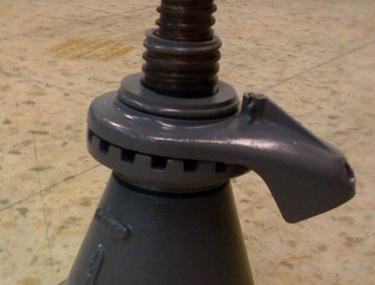

Droop Snoot Ratchet Winder |
![]() |

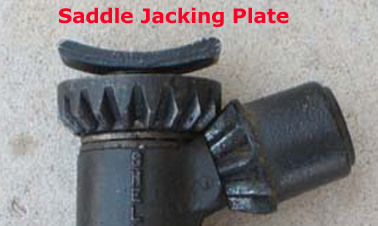

Saddle jacking Plate |
![]() |

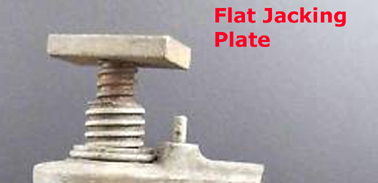

Flat Jacking Plate |
![]() |

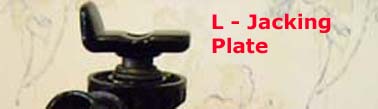

L - Jacking Plate |
![]() |

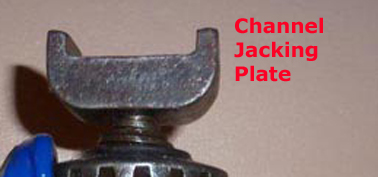

Channel Jacking Plate |
![]() |
Round Jacking Plate |
![]() |

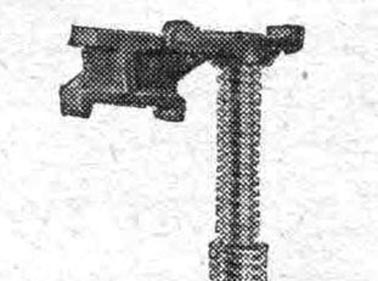

Hinged Extension |
Cantilever Jacks
![]() |

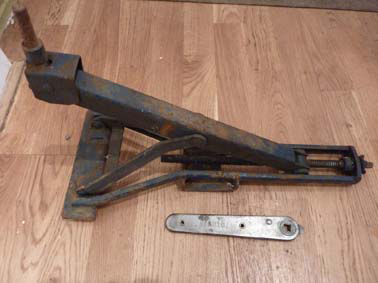

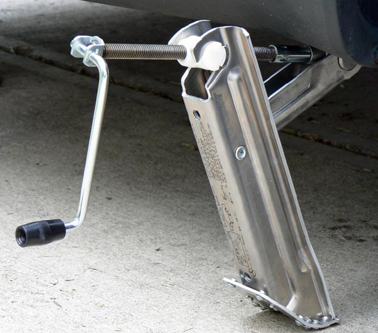

Cantilever Jack |
![]() |
Cantilever Jack |
Scissor Jacks
![]() |

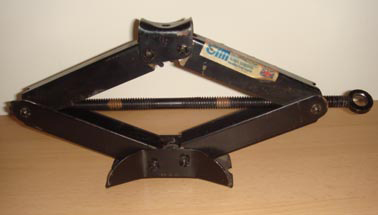

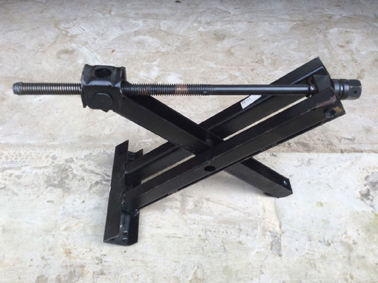

Scissor Jack |
![]() |
Scissor Jack. Sometimes referred to as a Rhombic Jack. |
![]() |

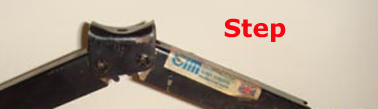

Metallifacture refer to the jacking plate as a 'Step'. |
Bumper Jacks
![]() |

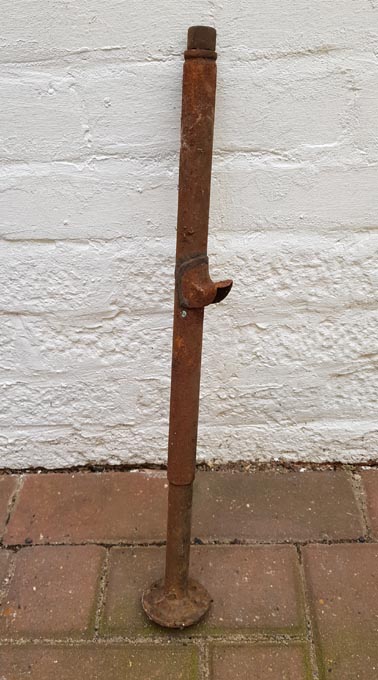

Bumper Jack. This would normally fit under one of the bumper support irons. |
Side Lift Jacks
|
|
![]() |

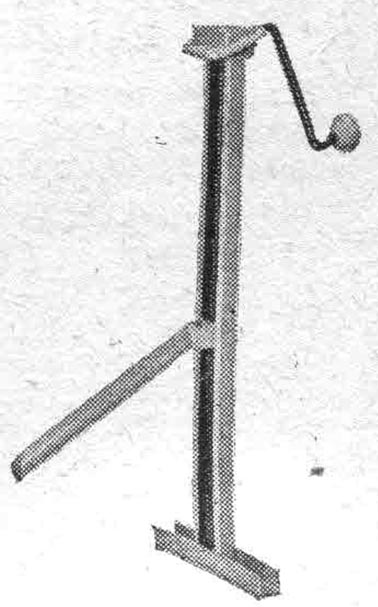

Side Lift jack and lifting arm. |
A Frame Jacks |
|
|

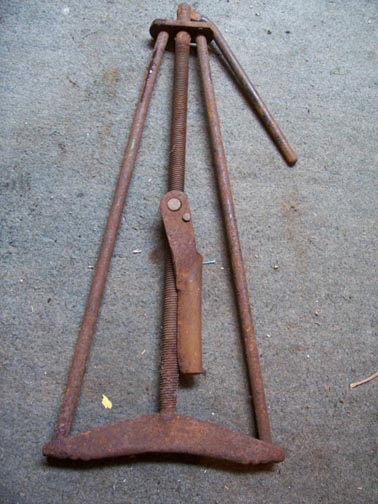

A Frame jack and lifting arm. |
Folding A Frame Jacks |
|
|
Folding A Frame jack and lifting arm. |
Capstan Jacks |
|
![]() |

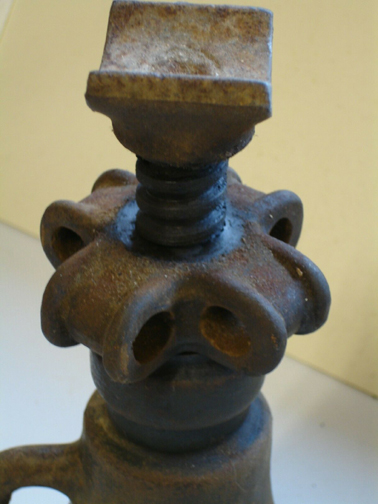

Capstan jack. |
Toe Jacks
|
|
![]() |

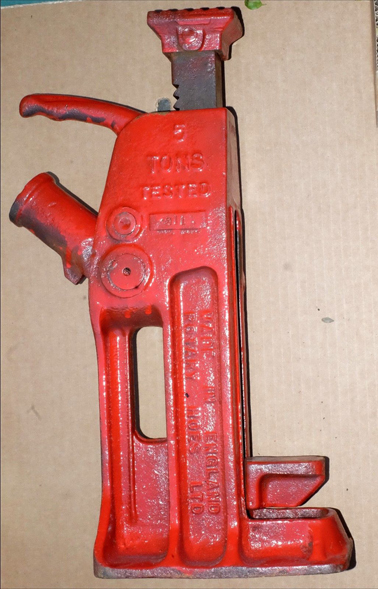

Toe Jack. Very low lifting toe for lifting equipment such as railway lines. |
Hydraulic Jacks
|
|
![]() |

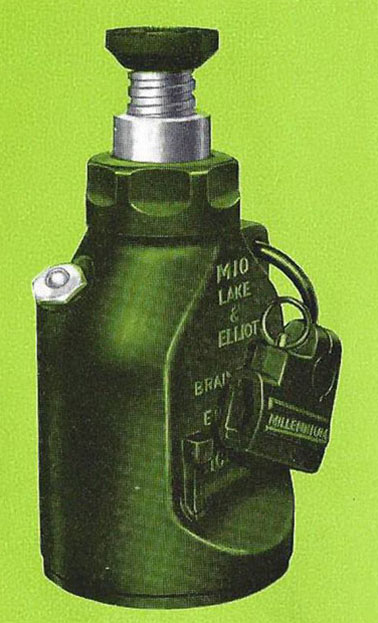

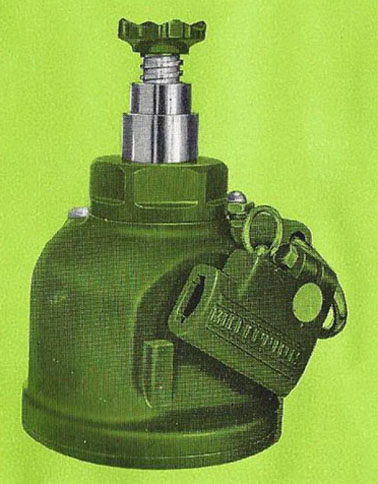

Single ram with manual screw extension. |
![]() |
Double ram with manual screw extension. |
